    Solar Electric Products & Systems

Water Pumping

C.O. Burnett carries a wide variety of solar water pumps. Our most popular pump products include the Shurflo 9300 series submersible pump, the SunRise submersible pump and the Dankoff Solar Slowpumps. Listed below are the specifications for these popular pumps. If you have a requirement that is not met by one of these pumps please contact us, we will be able help you out with a pump that is not listed.

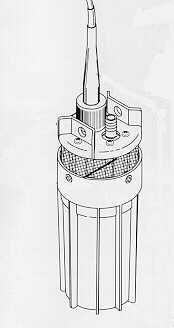

Shurflo Solar Submersible Pump

The 9300 series pump is designed to be strong, lightweight and easily repaired in the field.



24VDC 9300 Submersible Pump Flow Chart

Vertical Lift Flow Rate
Per Hour
Minimum Solar Array Power Current
Feet Meters Gal. Ltr. Watts Amps
20 6.1 117 443 58 1.5
40 12.2 114 432 65 1.7
60 18.3 109 413 78 2.1
80 24.4 106 401 89 2.4
100 30.5 103 390 99 2.6
120 36.6 101 382 104 2.8
140 42.7 99 375 115 3.1
160 48.8 98 371 123 3.3
180 54.9 93 352 135 3.6
200 61.0 91 345 141 3.8
230 70.1 82 310 155 4.1

Use of an LCB (Linear Current Booster) is required for optimum performance.

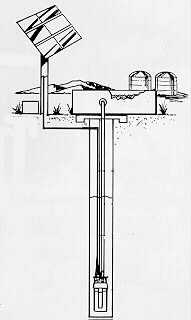

SunRise Solar Submersible Pump

The SunRise uses a patented, positive displacement mechanism optimized for lower flow rates. For very deep wells, it uses less power than any other solar pump system, at less than half the cost. The SunRise costs less than a windmill and, over time, far less than operating an engine driven pump.

SunRise Features

  • Simple and reliable, with no batteries required

  • Pumps effectively at lower power, unlike centrifugal pumps

  • Triple the capacity of other solar diaphragm pumps

  • Tolerates sand and running dry

  • Simple to install

  • Fits in a 4 inch well casing

  • All metal construction







SunRise Performance Chart

Vertical Lift Model 5218 Model 5226 Model 5230
Feet Meters LPM GPM Watts LPM GPM Watts LPM GPM Watts
0 0 10.5 2.8 78 14.2 3.7 96 27.5 7.3 204
25 8 10.1 2.7 84 13.7 3.6 108 25.0 6.6 212
50 15 9.6 2.5 9.6 12.9 3.4 124 23.3 6.2 220
75 23 9.0 2.4 108 12.4 3.3 138 21.0 5.5 229
100 30 8.9 2.1 114 12.0 3.2 151 18.8 5.0 240
125 38 8.3 2.2 126 11.6 3.1 166 16.8 4.4 250
150 46 7.7 2.0 138 11.0 2.9 180 15.5 4.1 259
175 53 7.3 1.9 144 10.7 2.8 192 14.2 3.7 267
200 61 7.1 1.8 156 10.4 2.7 210
250 76 6.5 1.7 168 9.6 2.5 229
300 91 5.8 1.5 180 9.1 2.4 256
350 107 5.4 1.4 192 8.3 2.2 276
400 122 5.0 1.2 198
450 137 4.7 1.2 204
500 152 4.2 1.1 216
550 168 4.1 1.1 219
600 183 3.7 1.0 222

Performance measured at 60VDC which is the typical working voltage from a 48V nominal PV array. Performance may vary plus or minus 10%. For battery system, subtract 15% from the flow and from the wattage, due to lower working voltage.

Dankoff Solar Slowpumps

The Slowpump is not submersible, but can draw water from shallow wells, springs, tanks, ponds, rivers and streams, and push it as high as 450 vertical feet and through miles of pipeline. Slowpumping minimizes the size and cost of the solar array, wire and piping. The Slowpump is less expensive than submersible diaphragm pumps, easier to repair and made in a much wider range of sizes. Wearing parts typically last 5 to 10 years. Overall life expectancy is 15 to 20 years.





Slowpump Performance Chart

1300 Series Pumps; PV or Battery; 12V or 24V
Vertical Lift 1322-V 1310-V 1308-V 1304-V
Feet Meters GPM Watts GPM Watts GPM Watts GPM Watts
20 6 .51 27 .92 29 1.25 30 1.75 37
40 12 .51 32 .92 41 1.25 48 1.75 53
60 18 .51 36 .89 46 1.2 54 1.68 64
80 24 .49 40 .88 51 1.2 60 1.64 73
100 30 .49 45 .88 57 1.2 66 1.64 82
120 36 .48 50 .88 61 1.2 70 1.62 90
140 42 .47 56 .88 66 1.2 75 1.6 100
160 48 .47 62 .87 74 1.2 84 1.6 112
180 54 .47 66 .86 82 1.18 .93 1.57 122
200 60 .45 74 .85 89 1.16 101 1.56 133
240 72 .44 90 .83 105 1.14 117 1.54 152
280 84 .41 102 .81 120 1.12 135 1.51 175
320 96 .41 120 .79 138 1.10 153 1.48 196
360 108 .41 134 .76 154 1.05 171
400 120 .40 150 .73 176 1.00 198
440 132 .39 168 .70 202



Slowpump Performance Chart

2500 Series Pumps; PV or Battery; 12V or 24V
Vertical Lift 2503-V 2505-V 2507-V
Feet Meters GPM Watts GPM Watts GPM Watts
20 6 2.5 48 3.25 52 4.0 57
40 12 2.5 60 3.23 69 3.95 78
60 18 2.4 78 3.15 90 3.9 102
80 24 2.3 93 3.1 106 3.9 120
100 30 2.3 105 3.08 124 3.85 144
120 36 2.25 121 3.02 142 3.8 165
140 42 2.2 138 2.92 166 3.65 195
160 48 2.2 153 2.85 187
180 54 2.15 165 2.75 205
200 60 21.5 180
240 72 2.15 204



Slowpump Performance Chart

1400 & 2600 PV Series Pumps; PV Direct 12V ONLY
Vertical Lift 1408-12PV 1404-12PV 2603-12PV 2605-12PV 2607-12PV
Feet Meters GPM Watts GPM Watts GPM Watts GPM Watts GPM Watts
160 48 2.5 174
180 54 2.45 197
200 60 1.95 190 2.4 215
240 72 1.92 210 2.3 251
280 84 1.5 198 1.85 2.43 2.2 288
320 96 1.40 227 1.75 2.75
360 108 .87 195 1.35 258
400 120 .88 210 1.3 287
440 132 .65 182 .90 230



LPM = GPM X 3.8. The suction capacity is 20 vertical feet (6m) at sea level; subtract 1 foot for every 1000 feet(1m for every 1000m). This pump CANNOT tolerate dirt. Water MUST be filtered clear. The solar array in PV direct systems must exceed the pump watts by 20% or more. A linear current booster is required to start and run in low light. Accessories include the following: intake strainer/foot valve, inline filter, intake filter/foot valve, spare filter cartridges and dry run switch.
